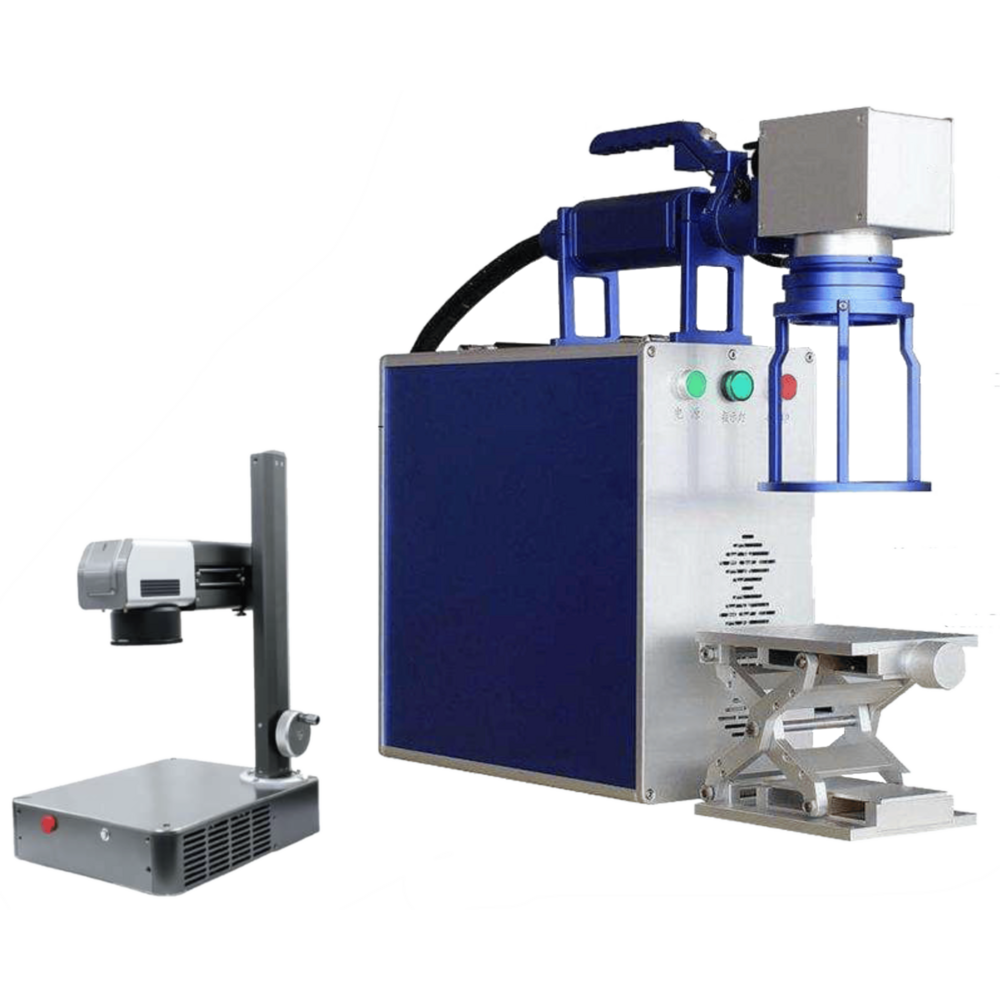

Fiber Laser Marking Machine

Fiber Laser Marking Machine
Fiber Laser Marking Machine
Send Inquiry
Product Code : Energizing Laser Tec
Brand Name : SIGMA
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price Range
  • 551000.00 - 851000.00 INR
  • Price
Product Description

Energizing Laser Technology

Complete Peace of Mind" Fiber Laser Marking System

Fiber Laser Marking Machine is one of the reliable, accurate and fast ways for permanently marking different materials like ceramics, silicon, metals, plastics, etc. First and last pulse of the system is equally useable. This machine is compatible to bitmap marking. In addition to this, it ensures high repeatability as well as stability of the designs. With status monitoring features and safe shut down ability, it provides the best and high speed marking.

Features

  • Fiber Laser with pulsed and CW operation
  • First and last pulse equally useable
  • High speed marking compatible (2000 cps)
  • Bitmap marking compatible
  • Pulse width variable (across 5 pre set waveforms)
  • Maximized peak power over full operational repetition rate
  • Back reflection hardened BDO - unique proprietary design
  • High reliability/ repeatability / stability design
  • 400,000 hrs MTTF tested diode lifetime
  • Maintenance-free operation
  • Automatic pump diode timing control
  • Status monitoring and safe shut down

Laser Source

Power up to

10 W (20 w optional)

Nominal peak power

15 kW

Modes of operation

Pulsed and CW/ modulated CW

Laser type

Fiber laser, pulsed

Wave length

1065±5nm

Beam mode

TEM oo

Modulation range in CW

DC to 100 kHZ

Pulse repetition rate

20- 100 kHZ

Length

Coupling fibre 3 M

Cooling

Air cooled

Laser protection

Class 4

Scan Head

Focal length

115±2

160±2

250±2

Marking Area

80 x 80 mm

110 x 110 mm

175 x 175 mm

Spot Ø

25 mm

35 mm

50 mm

  • Assembly set up possible in horizontal or vertical direction.
  • Scanning speed up to 1500 mm/s.
  • Resolution and Spot are approx in nature.
  • For special requirement, please contact us for other options.

Interfaces

PC interfaces

USB

Laser control interface

Provided

Operation voltage

100-240 VAC / 50-60 Hz

Power consumption

500 Watts

Operation temperature

5º C -45º C

Humidity

5 -95% RH (Non condensing)

Hardware Requirements

Pentium IV PC

500 MHz pulse frequency min

Memory

256 MB RAM, 500 MB free hard drive

Interface

USB interface

Operation system

Operating systems Windows XP

CD ROM

CD ROM drive

Laser Marking Software Features Utmost User Friendly

Characters formats

All true type fonts installed under Windows, filled or as outline

Font direction

Any alignment and font direction, Circular are marking

Font Width

Stretching and compressing possible

Graphics

Graphic elements

Line, circle, rectangle, polygon, all surface elements filled or unfilled

Graphics formats

PLT, DXF, BMP, JPG, TIF

Codes

Linear bar codes

Yes

2 D bar codes (Data Matrix etc)

Yes

Additional

Zaxis

Motorized (Optional), Manual (Optional)

Aiming beam

Included

All specifications about delivery, design and technical data are given to the best of our current knowledge and are subject to change without prior notice.
