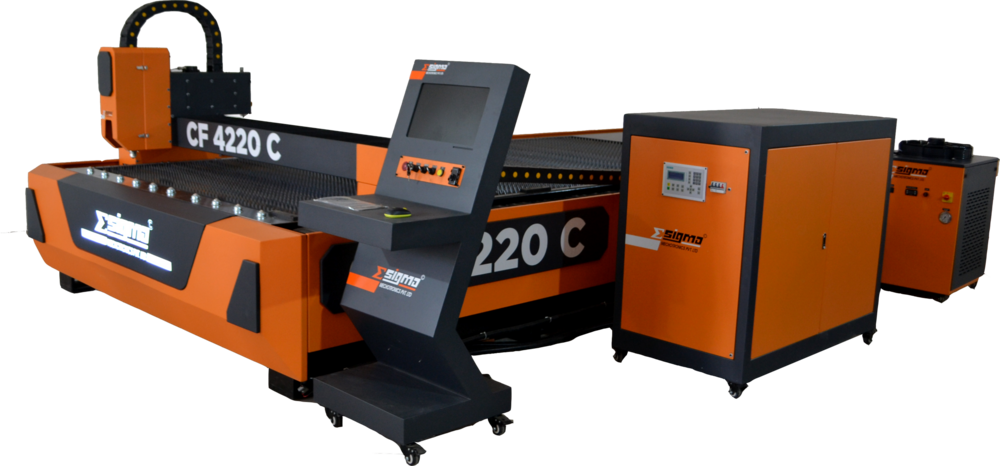

Fiber Laser Cutting Machine Open Type Single Pallet

Send Inquiry

Request To Call Back

Fiber Laser Cutting Machine Open Type Single Pallet

Get a Price/Quote

MOQ : 1 Piece

Fiber Laser Cutting Machine Open Type Single Pallet Specification

Phase
Three Phase

Working Area
3000mmx1500mm, 4000mmx2000mm, 6000mmx2000mm

Usage & Applications
Sheet Metal Cutting, Fabrication, Automotive, Industrial Manufacturing

Power
1000W (option for higher power)

Technology
Fiber Laser

Product Type
Open Type Single Pallet Fiber Laser Cutting Machine

Laser Type
Fiber Laser

Material
Metal Sheet (Steel, Stainless Steel, Aluminium, etc.)

Cutting Thickness
Depends on power (Up to 12mm for steel @1000W)

Cutting Area
3000mm x 1500mm (LxW)

Cutting Speed
Max. positioning speed 80 m/min

CNC Or Not
Yes

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
Proprietary CNC Software

Graphic Format Supported
AI, BMP, PLT, DXF, DST, etc.

Control System
America Delta Tau Systems Inc P MAC full-closed loop servo controller

Voltage
380 V

Weight (kg)
5000 Kg

Dimension (L*W*H)
9200x3050x1900 mm to 11200x3660x1900 mm

Capacity
Industrial Heavy Duty

Feature
High-precision cutting, open-type structure, single working table

Color
White/Blue

Laser Generator Working Mode
Continuous/Modulation

X Axle Stroke
3050 mm

Z Axle Stroke
100/120 mm

Max. Acceleration
1G

Output Power Option
1000W

Auxiliary Gas System
Dual-pressure, 3 gas sources

Beam Mode
Multimode

Laser Source
IPG fiber laser generator

Y Axle Stroke
1550 mm

Positioning Accuracy
+/- 0.05 mm

Repeatability
+/- 0.03 mm

Floor Space
5.6m x 3.2m

Fiber Laser Cutting Machine Open Type Single Pallet Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
7 Days

About Fiber Laser Cutting Machine Open Type Single Pallet

Jump on an extraordinary innovation in metal fabrication with the Fiber Laser Cutting Machine Open Type Single Pallet. This elite equipment features a heavy-duty frame for stability, a fresh open structure for easy access, and a high-speed, smooth-edge cutting prowess. Reduced vibrations and high-precision output make it a virtuoso choice for fabricators demanding accuracy and efficiency. Equipped with cutting-edge IPG fiber laser, dual pressure gas system, and auto-focus laser head, it's designed for industrial heavy-duty operations in India. Upgrade now for excellence in sheet metal fabrication.

Usage & Direction of Fiber Laser Cutting Machine

This Fiber Laser Cutting Machine Open Type Single Pallet is widely used for industrial sheet metal cutting and fabrication in sectors such as automotive and manufacturing. Used as an automated CNC cutting solution, it accommodates metal sheets like steel and aluminum. To operate, position your workpiece, set your design via the proprietary CNC software, and initiate the process. It delivers precise, efficient cuts along programmed paths, reducing labor and boosting production speed.

Certifications, Payment Terms, and Shipping

Our Fiber Laser Cutting Machine meets certified industrial standards, ensuring robust quality for every shipped unit. Payment terms are flexible and provided in your official quotation. Samples are available upon request to experience the machine's capability first-hand. Freight is arranged according to your selected shipping method and destination, guaranteeing that shipped goods arrive safely and promptly. For detailed quotations or sample requests, please connect with our distributor, importer, or supplier in India.

Features

Heavy-Duty Frame	Ensures stability and minimizes vibrations for precision cutting.
High-Speed Cutting	Delivers fast and precise cutting for various materials.
Smooth Edge Cutting	Minimal burrs and no need for additional finishing.
Auto-Focus Laser Head	Adjusts focus automatically

FAQ's of Fiber Laser Cutting Machine Open Type Single Pallet:

Q: How does the auto-focus laser head improve cutting results?

A: The auto-focus laser head automatically adjusts focus, ensuring consistently precise and high-quality cuts, reducing manual intervention and boosting productivity.

Q: What materials can this Fiber Laser Cutting Machine process?

A: This machine efficiently cuts various metal sheets such as steel, stainless steel, and aluminum, supporting industrial fabrication and manufacturing requirements.

Q: Where can the Fiber Laser Cutting Machine be employed?

A: It is ideal for use in fabrication workshops, automotive manufacturing, sheet metal industries, and any setting requiring precise metal cutting.

Q: What is the process for setting up and using the machine?

A: Setup involves positioning the metal sheet, configuring the design through the CNC software, selecting auxiliary gases, and then initiating automatic cutting operations.

Q: When should I consider upgrading to this machine?

A: You should consider upgrading when seeking higher precision, reduced post-processing, and increased cutting speeds for efficient industrial production.

Q: What are the benefits of the heavy-duty frame in this model?

A: The heavy-duty frame greatly stabilizes the machine, minimizing vibrations during operation and enabling high-precision, burr-free cutting results.
