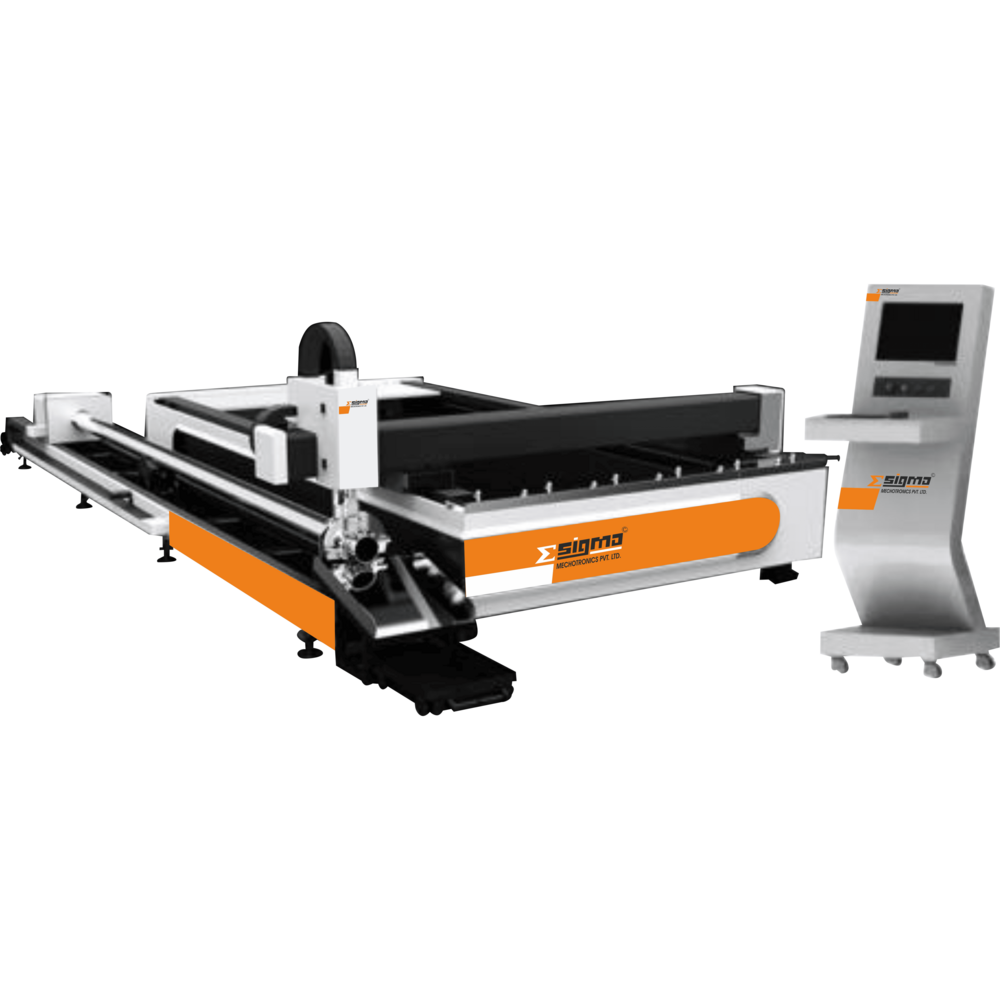

Fiber Laser Cutting Machine With TubePipe Cutting Attachment

Send Inquiry

Request To Call Back

Fiber Laser Cutting Machine With TubePipe Cutting Attachment

Get a Price/Quote

MOQ : 1 Unit

Fiber Laser Cutting Machine With TubePipe Cutting Attachment Specification

Technology
Fiber Laser

Power
1000W - 6000W

Phase
3 Phase

Usage & Applications
Metal Sheet & Tube Cutting for Industrial, Manufacturing, Fabrication, Construction, Automotive, Furniture

Working Area
1500 x 3000 mm (standard)

Product Type
Fiber Laser Cutting Machine With Tube/Pipe Cutting Attachment

Laser Type
Fiber Laser

Material
Metal, Stainless Steel, Carbon Steel, Aluminum, Brass, Copper

Cutting Thickness
Up to 25 mm (depends on material and power)

Cutting Area
1500 x 3000 mm (customizable)

Cutting Speed
Max 60 m/min

CNC Or Not
CNC

Computerized
Yes

Automatic Grade
Automatic

Cooling Mode
Water Cooling

Control Software
CypCut / FSCUT

Graphic Format Supported
AI, DXF, PLT, BMP, DST, DWG, etc.

Control System
CNC Control

Voltage
380V / 50Hz / 60Hz

Weight (kg)
5000 kg (approx)

Dimension (L*W*H)
4800 x 2260 x 1900 mm (approx)

Capacity
1000W - 6000W (customizable)

Feature
High Precision, Fast Speed, Stable Performance, Tube/pipe and sheet cutting

Color
White & Blue (customizable)

Table Structure
Heavy Duty Welded Bed

Chiller Type
Industrial Water Chiller

Safety System
Enclosed Design, Emergency Stop, Laser Protective Glass

Control Panel
Touch Screen Interface

Laser Wavelength
1064 nm

Positioning Accuracy
0.03 mm

Tube Length Capacity
Up to 6000 mm

Assist Gas
Oxygen, Nitrogen, Air

Laser Source Brand
Raycus / Max / IPG (optional)

Laser Head
Auto-focusing Fiber Laser Head

Transmission Method
Double Drive Gantry, Rack and Pinion

Max Acceleration
1.0G

Supporting Tube Diameter
20-200 mm (customizable)

Reposition Accuracy
0.02 mm

Fiber Laser Cutting Machine With TubePipe Cutting Attachment Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
10 Units Per Month

Delivery Time
7 Days

About Fiber Laser Cutting Machine With TubePipe Cutting Attachment

Get access to a pristine, high-performance Fiber Laser Cutting Machine with TubePipe Cutting Attachment, designed for optimum precision across opulent industrial needs. Reduced cycle times and stable operation are achieved with double drive gantry and advanced auto-focusing fiber laser head. Supporting a wide range of tube diameters (20-200 mm, customizable) and cutting thickness up to 25 mm, this machine provides swift, accurate, and versatile solutions. The heavy-duty welded bed and enclosed design prioritize safety, while the intuitive control panel simplifies operation for enhanced productivity in every session.

Advanced Applications for Seamless Metal Fabrication

This Fiber Laser Cutting Machine With TubePipe Cutting Attachment is meticulously crafted for application on both sheet and tube surfaces of metals like stainless steel, aluminum, and brass. Its refined method enables complex industrial fabrication, automotive chassis production, and intricate construction projects. Operators benefit from automatic, touch-controlled cutting, catering to precision requirements while accommodating custom cutting areas and tube diameters, ensuring broad usability across diverse manufacturing and design tasks.

Convenient Logistics & Sample Handling Services

FOB port handover ensures the machine is efficiently handed over at the specified port, streamlining transport services for distributors and manufacturers. Drop-off options are available for convenient sample access and evaluation. Our sample policies offer professional support to facilitate your initial purchase, giving you confidence in your investment before committing to larger consignments. With reliable export and delivery processes, every product transport is coordinated for security and satisfaction.

FAQ's of Fiber Laser Cutting Machine With TubePipe Cutting Attachment:

Q: How does the tube and sheet cutting function enhance production efficiency?

A: The integrated tube and sheet cutting attachment allows operators to process diverse metal profiles in a single setup, reducing changeover time and improving overall productivity in manufacturing environments.

Q: What materials can be cut using this fiber laser cutting machine?

A: This machine is designed to cut metals such as stainless steel, carbon steel, aluminum, brass, and copper with high precision and control, suitable across automotive, fabrication, and construction industries.

Q: What is the process for sample evaluation before purchase?

A: Prospective clients may request a sample, which will be prepared and handed over at the designated drop-off port according to our sample policy, allowing for product testing prior to full-scale commitment.

Q: Where can the machine be transported after purchase?

A: Our transport services cover major Indian distribution centers and ports. Upon arrangement, the machine is handed over at the FOB port for overseas or local shipping as per client requirements.

Q: What benefits does the enclosed safety system provide to operators?

A: The enclosed design with emergency stop features and laser protective glass ensures safe operation by minimizing exposure to laser radiation, thereby safeguarding users while maintaining high cutting performance.
